Harnessing Orthosis Development, Innovation, and Product Improvement


Often, we hear that an orthosis is fully developed. There are no significant innovation and the
improvements that are made only concern the addition of different sizes, different colors or
the use of other materials.
However, is this really the case? When is a product fully developed and how can you recognize

TRIZ S-Curve

To visualize and analyze the evolution of products, such as orthoses, the TRIZ S-Curve can be
used [1] (Figure 1). Each S-Curve shows the evolution of product improvement that consists of
three phases: development, introduction and maturity. When connecting multiple S-Curves,
one can see the difference between product improvement and innovation (Figure 1).

Trizz model

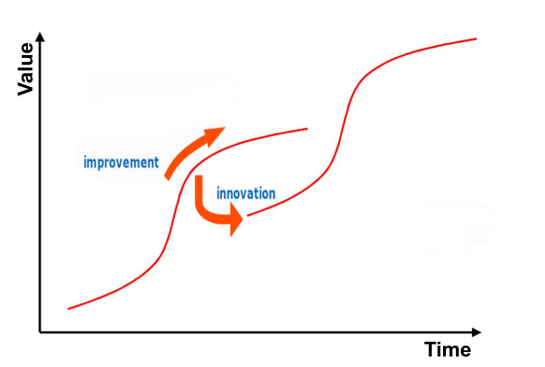

Figure 1 – S-Curve of the TRIZ model [1] showing the evolution of two products towards
improvement and innovation. At some point device improvement is no longer profitable and
innovation is needed. To make the transition from improvement to innovation, courage is
needed as the first version of an innovated device usually underperforms the matured device.

An example: ankle foot orthoses

When focusing on ankle foot orthoses (AFOs), first and second generation AFOs can be
identified, indicated by the first and second S-Curve, respectively (Figure 2).
First generation AFOs are generally mechanic and provide static support which means that the
amount of ankle stiffness is determined before commencing in an activity such as walking.
This stiffness may be different into dorsiflexion when compared to plantarflexion direction.
Second generation AFOs provide dynamic support which means that the amount of stiffness
can vary during an activity. One example is the Unpowered exoskeleton which consists of a
clutch to vary support during walking (most right AFO in Figure 2).

Development of ankle foot orthoses from left to right

Figure 2 – Development of ankle foot orthoses from left to right: First generation, heavy
leather and steel AFOs (C1200) were replaced by lighter plastic AFOs (Posterior Leaf Spring
(PLS) & Foot Drop Brace). Variations in trim line resulted in stiffer (PLS) and more flexible
AFOs (Foot Drop Brace). The development of new materials such as carbon enabled the
production of both lightweight and energy return AFOs (Ground Reaction Force orthosis). A
better understanding of patients’ specific ankle stiffness needed into dorsiflexion (DF) and
plantarflexion (PF) direction resulted in the development of the Neuro swing and the Orthosis
with oil damper [2]. Second generation AFOs can vary the patients’ specific (DF/PF) stiffness
during an activity (Adjust [3] & Unpowered exoskeleton [4]).


When to start an innovation is not an exact science but a correct timing is important as it will
not be profitable when you make the transition too soon, nor when you make it too late.
It can help the decision-making process to evaluate in which phase your medical device
currently is. This approach requires a different viewpoint which allows you to get a clear idea
on what your focus should be: cost reduction, function improvement, or disruptive innovation.

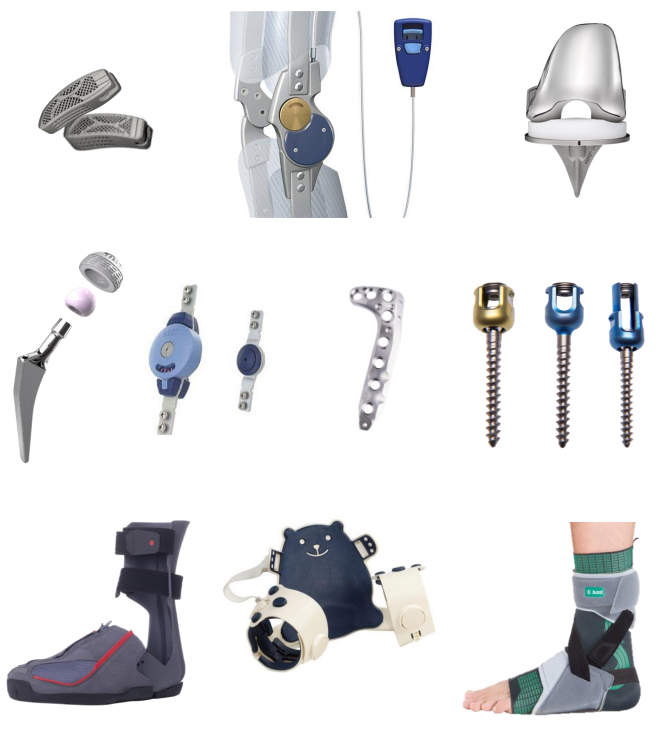

Example products

At BAAT, we were able to realize some interesting examples of both improved and
innovated medical products:

Examples of ankle foot orthoses
