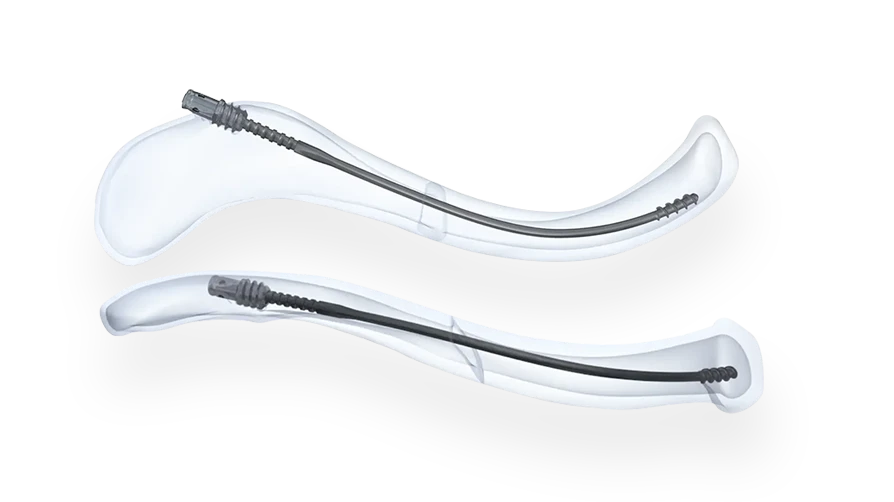

Publication on the Clavicula Pin
Inspired by the Clavicula Pin project our partner Paul Hoogervorst proposed to create a paper from our initial mechanical validation approach using the DSEM (Delft Shoulder and Elbow Model). This paper has now been accepted in the Clinical Biomechanics journal.
Highlights
- The highest forces were simulated along the x-axis, increasing to 118 N during abduction.
- The largest resultant moment simulated across the clavicle was 2.4 Nm during abduction and forward elevation.
- Forces in opposite direction along the y-axis were identified on either side of the conoid ligament.
- Similar forces and moments during activities of daily living were identified irrespective its sagittal plane.
- The forces and moments during activities of daily living activities occur at different locations on the clavicle.
